513-454-10E

COMPARATORE 40MM

Codice: Z4823

Disponibilità: Non disponibile

Codice del produttore: 513-454-10E

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€117,00

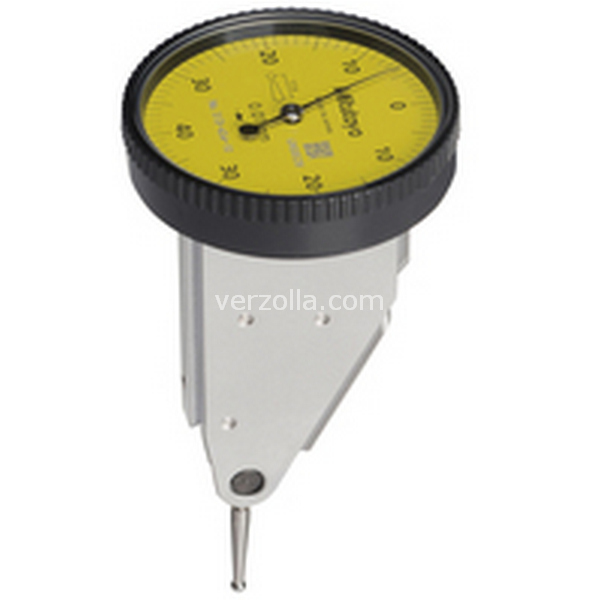

Comparatore a leva verticale

Sensibilmente aumentate durata, sensibilità e visibilità.Il cristallo antiriflesso piatto permette una facile lettura delle graduazioni.

Range	0,8
Graduation	0.01 mm
Scale	0-40-0
Contact point	Thread M 1,7 x 0,35
Anti-magnet	Yes
Measuring force	0,01-0,3
Inch-Metric	Metric
Carbide stylus tip ø2 mm No.	103006
Functions	Basic set
Delivered	In box with clamping shaft ø8 mm or 3/8"
Article Type	Product
Articlegroup	41
Articlegroup Subgroup	4100
L1[mm]	20,9
L2[mm]	17,4
Mass	46
any 10 scale divisions	5
Measuring range	8
Hysteresis	3
Repeatability	3
any 10 scale divisions	5
any half revolution	6
Measuring range	8
Hysteresis	3
Repeatability	3
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Specially designed for easy viewing of dial in certain situations.• The dial faces upward, thus keeping the body of the indicator away from the workpiece when viewing from above.• No-clutch mechanism for automatic reversal of measuring direction.• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.• The glare-free flat crystal face has a scratch-resistant coating.• High-sensitivity and quick response due to low-friction jewelled bearings.
Imes relevant (1=yes)	1
