513-455-10E

COMPARATORE A LEVA GRAD.0,002MM

Codice: AE207

Disponibilità: Non disponibile

Codice del produttore: 513-455-10E

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€167,40

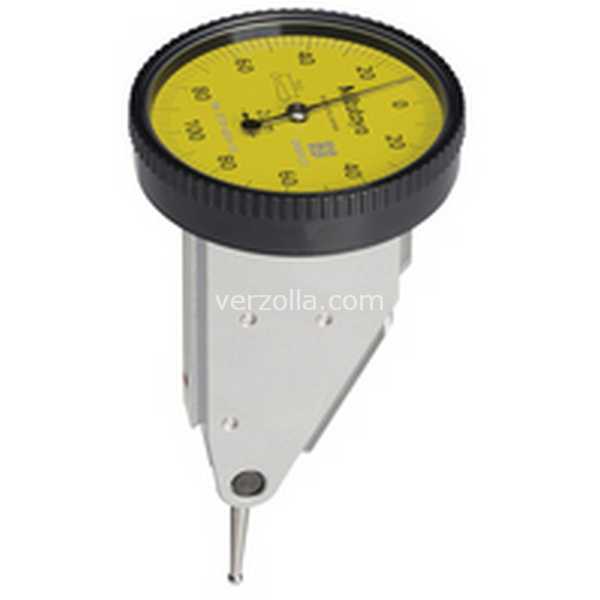

Comparatore a leva verticale

Sensibilmente aumentate durata, sensibilità e visibilità.Il cristallo antiriflesso piatto permette una facile lettura delle graduazioni.

Range	0,2
Graduation	0.002 mm

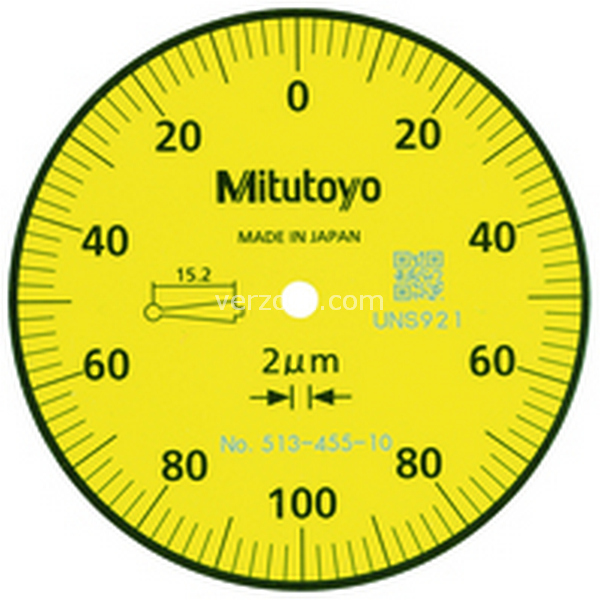

Scale	0-100-0
Contact point	Thread M 1,7 x 0,35
Anti-magnet	Yes
Measuring force	0,01-0,3
Inch-Metric	Metric
Carbide stylus tip ø2 mm No.	103011
Functions	Basic set
Delivered	In box with clamping shaft ø8 mm or 3/8"
Article Type	Product
Articlegroup	41
Articlegroup Subgroup	4100
L1[mm]	18,7
L2[mm]	15,2
Mass	46
any 10 scale divisions	2
Measuring range	3
Hysteresis	2
Repeatability	1
any 10 scale divisions	2
any half revolution	3
Measuring range	3
Hysteresis	2
Repeatability	1
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Specially designed for easy viewing of dial in certain situations.• The dial faces upward, thus keeping the body of the indicator away from the workpiece when viewing from above.• No-clutch mechanism for automatic reversal of measuring direction.• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.• The glare-free flat crystal face has a scratch-resistant coating.• High-sensitivity and quick response due to low-friction jewelled bearings.
Imes relevant (1=yes)	1
