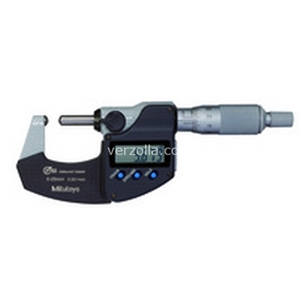

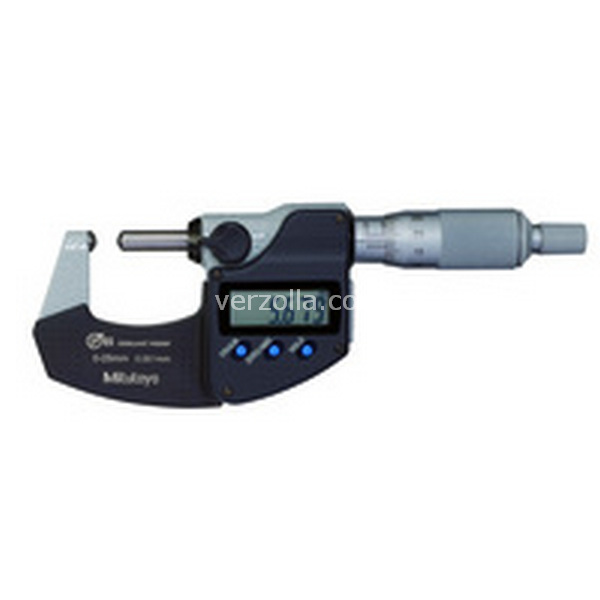

395-271-30

MICROMETRO IP65 EST.0-25MM

Codice: X9134

Disponibilità: Non disponibile

Codice del produttore: 395-271-30

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€611,10

MICR.ELETT.SUP.CONV."IP-

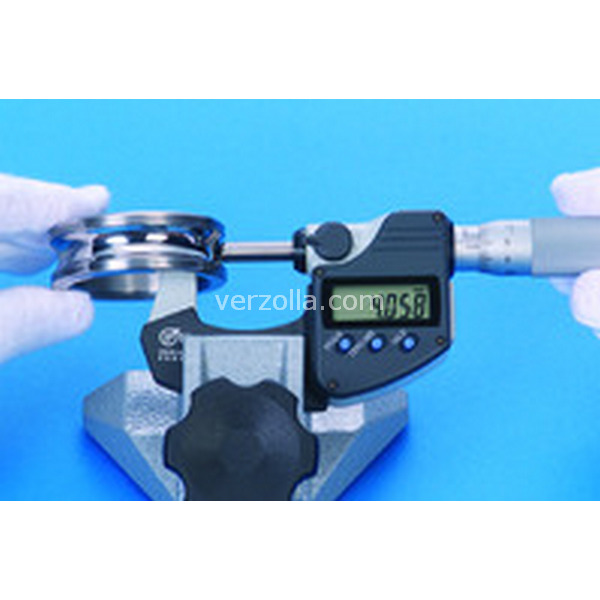

Modelli Digimatic con uscita datiPer la misura di tutte le superfici curve e lo spessore di pareti di tubi, cuscinetti, anelli, etc.

Accuracy	Refer to the list of specifications (excluding quantizing error)
Range	0-25
Measuring force	42865
Digital step	0,001 mm
Graduation	0.01мм. .001" / .0001"(analog models)
Remarks	D: 15 mm
Scale	Thimble and sleeve satin chrome finish, ø18 mm
Flatness	0,6 µm/0.000024"
Measuring surfaces	Carbide tipped, micro-lap finish
Anvil/ Tip	Type B
Measuring spindle	ø6.35 mm, spindle pitch 0,5 mm, with spindle lock
Origin	Yes
Zero/abs	Yes
Auto Power OFFafter 20 min. non use	Yes
Low voltage alarm	Yes
Function lock	Yes
Inch-Metric	Metric
Data output	Yes
Accuracy	±2
Functions	Model with two spherical anvils
HOLD	Yes
Battery life	approx. 2.4 years
D	15
B	9
C	25
Delivered	Including box, setting standard (from 25 mm upward), key, 1 battery
Mass	270
