122-101

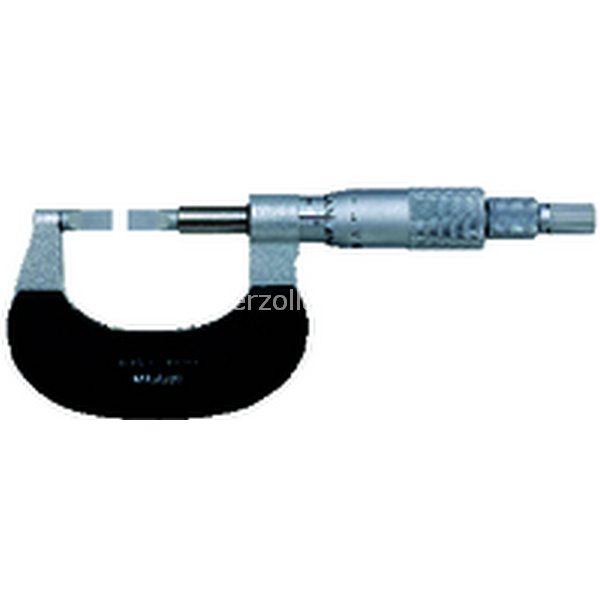

MICROMETRO PER ESTERNI 0-25MM

Codice: Q0754

Disponibilità: Non disponibile

Codice del produttore: 122-101

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

MICROM. EST. PER CAVE 0-

Modelli analogiciCon stelo ed incudine a lamaPer la misura di scanalature esterneStelo non rotante

Accuracy	Refer to the list of specifications
Range	0-25
Measuring force	42804
Graduation	0.01 mm
Scale	Skalentrommel und Skalenhülse mattverchromt, Ø 18 mm
Parallelism	3 µm for models up to 75 mm (3+L/100) µm for models over 75 mm, L= max. range (mm)
Anvil/ Tip	A
Measuring spindle	ø 8 mm, spindle pitch 0,5 mm
Inch-Metric	Metric
Accuracy	±3

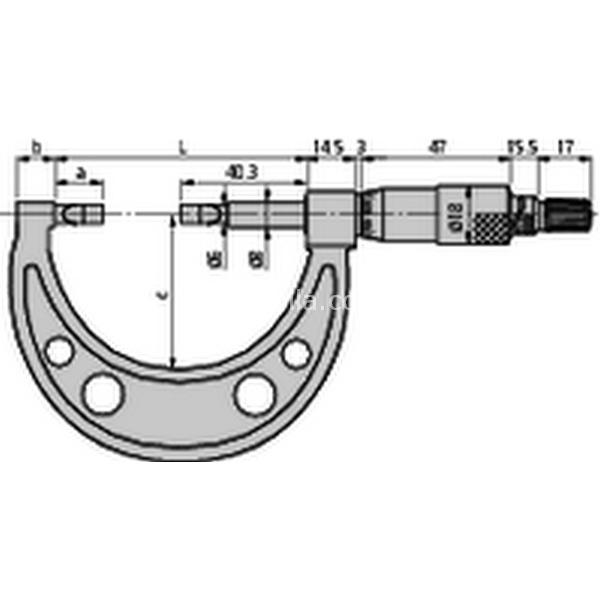

L	55,3
A	15
B	8
C	30
Delivered	Including box, setting standard (from 25 mm upward), key
Mass	260
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.• With Ratchet Stop for constant force.
