112-202

MICROMETRO PER ESTERNI 25-50 MM

Codice: A1253

Disponibilità: Disp. limitata

Codice del produttore: 112-202

Disponibilità: 1 disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€263,70

Scarica PDF

Descrizione

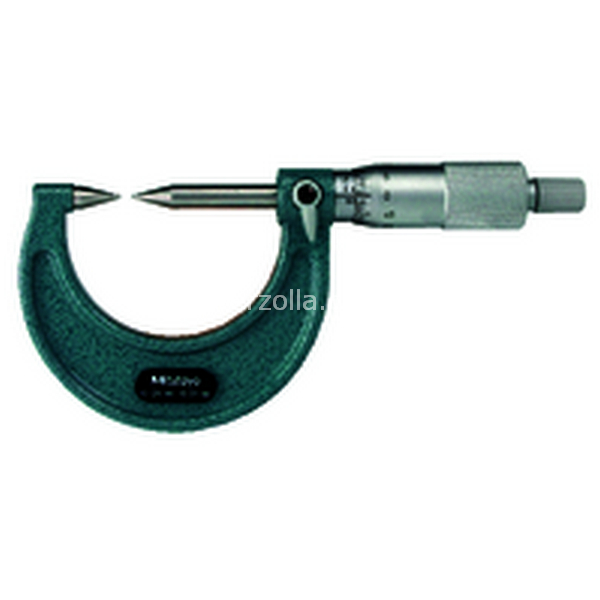

Micrometro per esterni 25-50 mm punte coniche

Dettagli

MICROM.EST.25-50 MM PUNT

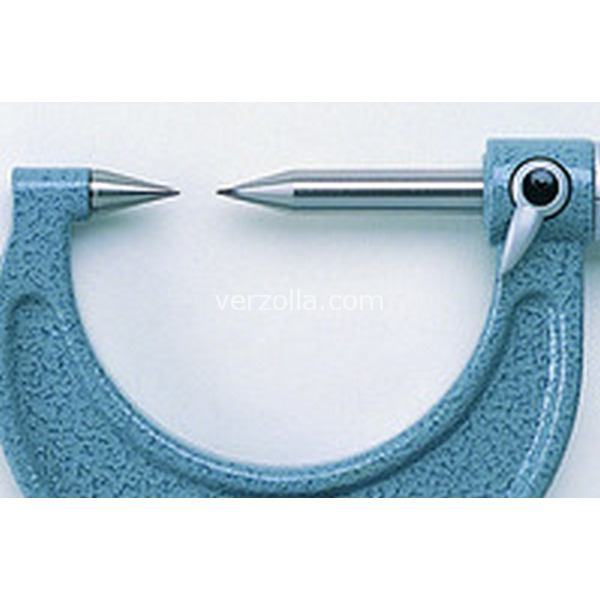

Micrometro con incudini a puntaModelli con differenti angoli di puntaLa punta termina con un piccolo raggioCon stelo ed incudine a puntaPer la misura di scanalature, gradini, etc.

Digital/Analog	Analog
Accuracy	0-75 mm ±3 µm 75-100 mm ±4 µm Inch ±0.00015"
Range	25-50
Measuring force	42802
Graduation	0.01 mm
Scale	und Skalenhülse mattverchromt, Ø 18 mm
Measuring surfaces	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0,3 mm
Measuring spindle	With spindle lock, spindle pitch 0,5 mm
Inch-Metric	Metric
Accuracy	±3
Functions	Hardened steel tip
Point	30°
L	80,3
A	12,8
B	12
C	49
Delivered	Including box, setting standard (from 25 mm upward), key
Mass	305
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.• 15 degree and 30 degree measuring points are available.• The measuring points (carbide-tllied) have approximately 0.3mm radius.• With Ratchet Stop for constant force.
Imes relevant (1=yes)	1
