103-148-10

MICROMETRO PER ESTERNI 275-300 MM

Codice: F0186

Disponibilità: Non disponibile

Codice del produttore: 103-148-10

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€306,90

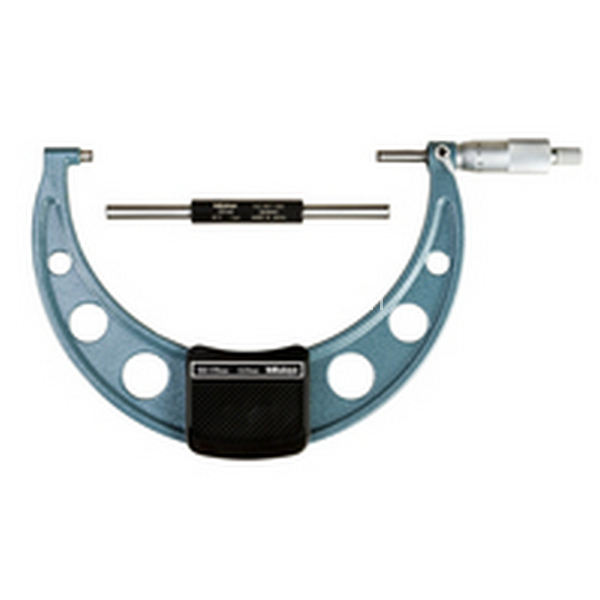

Micrometro per esterni 275-300 mm

MICROMETRO ESTERNI 275-3

Nuova generazione di micrometri per esterni con elevata accuratezza.In esecuzione leggera, da officina

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	275-300
Scale	thimble and sleeve satin chrome finish, Ø 18 mm
Graduation	0.01 mm / 0.001 mm
Flatness	0,6 μm for models up to 300 mm 1 μm for models over 300 mm
Parallelism	1 μm for models up to 50 mm 2 μm for models up to 100 mm 3 μm for models up to 175 mm 4 μm for models up to 275 mm 5 μm for models over 300 mm
Measuring surfaces	carbide-tipped, micro-lap finish
Measuring spindle	Ø 6,35 mm, Spindle pitch 0,5 mm with spindle lock
Parallelism	(2+L/100) μm (mm), L = max. range
Inch-Metric	Metric
Accuracy	±5
Functions	Graduation 0,01 mm
Measuring force	5-10 N (from 100 mm upward : 5-15 N)

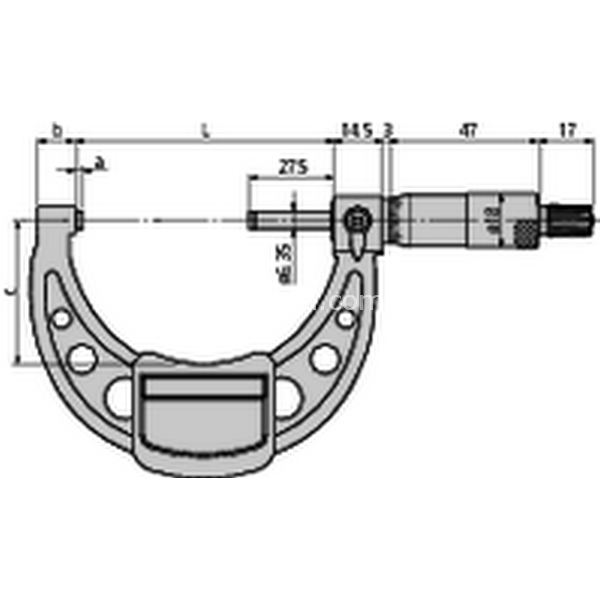

L	309
A	6,5
B	18
C	166
D	6,35
Delivered	Including box, setting standard (from 25 mm upward), key
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
Mass	1565
relevant for catalog	International
Features	• Hammertone-green, baked-enamel finished frame.• Ratchet Stop or Friction Thimble for excellent repeatability.• Supplied with a setting standard.
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
