104-146A

MICROMETRO PER ESTERNI 700-800MM

Codice: AD443

Disponibilità: Non disponibile

Codice del produttore: 104-146A

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€1427,40

MICROMETRO ESTERNI 700-8

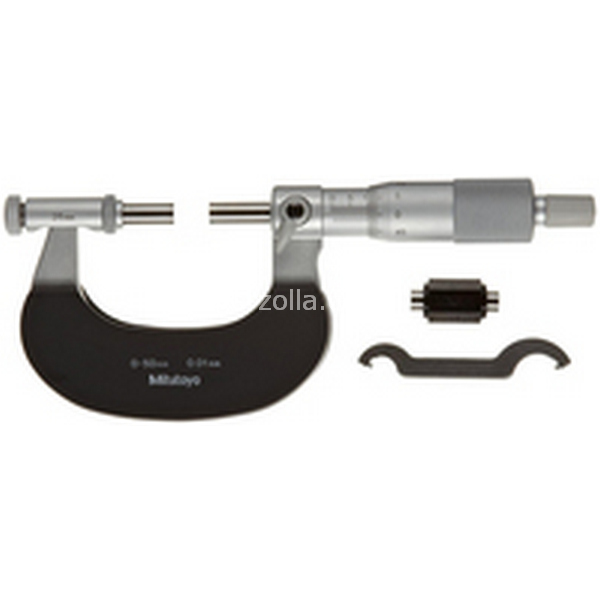

Micrometro per esterni con incudini intercambiabili.Le incudini intercambiabili ampliano il campo di misura dello strumentoCon frizione

Digital/Analog	Analog
Accuracy	±(4+L/75) µm, L = max. range (mm) ±[0.00016"+0.00004 (L/3)], L = max. range (inch)
Range	700-800
Graduation	0.01 mm
Scale	Thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm) ø 21 mm (over 300 mm)
Flatness	0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
Parallelism	2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
Measuring surfaces	hardened, precision ground, micro-lap finish
Measuring spindle	Ø 8 mm, Spindle pitch 0,5 mm with spindle lock
Inch-Metric	Metric
Interchangeable anvils	4
Setting standard	4
Measuring force	5-10 N, 10-14 N (over 300 mm)
Delivered	Including box, gauge block, inserts, key
Mass	9,08
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Wide measuring range with interchangeable anvils.• With Ratchet Stop for constant force.• Supplied with setting standards for each range.
