102-304

MICROMETRO PER ESTERNI 75-100MM

Codice: Z5537

Disponibilità: Non disponibile

Codice del produttore: 102-304

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€131,40

MICROMETRO ESTERNI 75-10

Micrometri isolati termicamente, con arco affusolato vicino all'incudine per misure in spazi ridotti .Modelli con frizione a cricchetto sul codolo

Digital/Analog	Analog
Accuracy	Refer to the list of specifications
Range	75-100
Scale	thimble and sleeve satin chrome finish, Ø 18 mm
Measuring force	42865
Graduation	0.01 mm
Flatness	0,6 µm
Measuring surfaces	carbide-tipped, micro-lap finish
Measuring spindle	Ø 6,35 mm, Spindle pitch 0,5 mm with spindle lock
Accuracy	±3
Parallelism	2 µm for 0 to 75 mm model 3 µm for models 75-100 mm
Inch-Metric	Metric
Accuracy	±3
Content of Set	102-701(Ratschentrommel)/-302/-303/-304

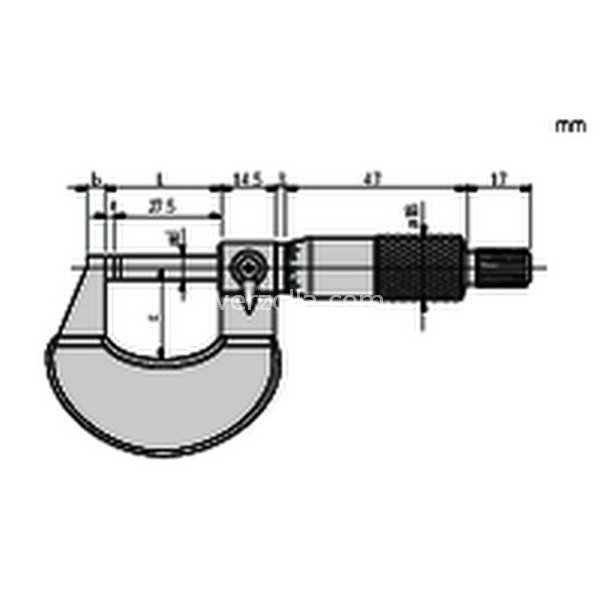

L	105,3
A	2,8
B	10
C	58
D	6,35
Delivered	Including box, key setting standard (from 25 mm upward), certificate of inspection (0-50 mm range)
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Features	• Heat-insulated frame, tapered (behind the anvil) for hard-to-reach places.• Supplied with a setting standard.• A ratchet stop for a constant measuring force.
Imes relevant (1=yes)	1
Brammer relevant (1=yes)	1
