368-168

MICROMETRO PER INTERNI

Codice: N4067

Disponibilità: Non disponibile

Codice del produttore: 368-168

Disponibilità: Disponibile

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€481,50

Scarica PDF

Descrizione

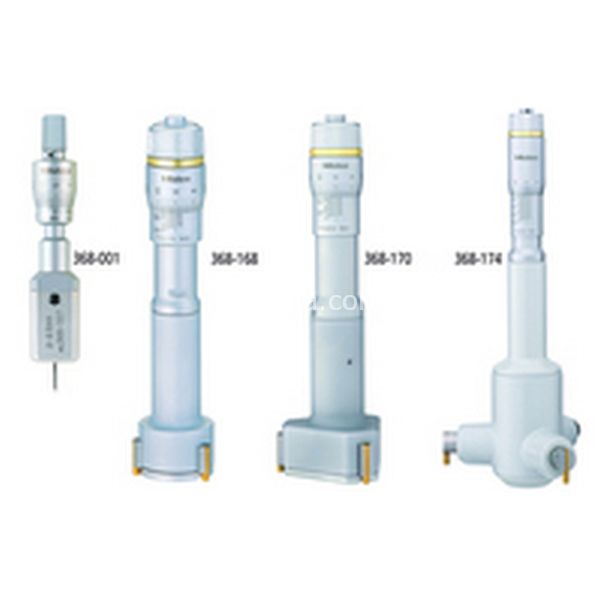

Micrometro per interni a tre punte Holtest (contatti riportati al T.I.N)

Micrometri per interni a due o tre punte.Micrometri individuali.Contatti di misura rivestiti in titanio con eccellente durata e resistenza agli urti.I modelli a tre punte (campo > 6 mm) consentono misure stabili grazie al sistema di autocentratura su foroSenza prolunghe o anelli di riscontro.

Digital/Analog	Analog
Accuracy	2-20 mm : ±2 µm 20-100 mm : ±3 µm 100-300 mm : ±5 µm
Range	30-40
Graduation	up to 12 mm: 0.001 mm over 12 mm: 0.005 mm
Spindle pitch	Spindle pitch 0,5 mm
Scale	Thimble and sleeve satin chrome finish, Up to 12 mm : ø 17 mm Over 12 mm : ø 23 mm
Measuring Surface/Pins	2 - 6 mm: carbide 6 - 12 mm: titanium coated tungsten carbide 12 - 300 mm: titanium coated hardened steel taper: tungsten carbide
Measuring spindle	Spindle pitch 0,5 mm
Measuring-surface material	Titanium coating (1700-2000 Hv)
Inch-Metric	Metric
Depth without extension	98
Measuring method	Three-point
L1	102
L2	145-155

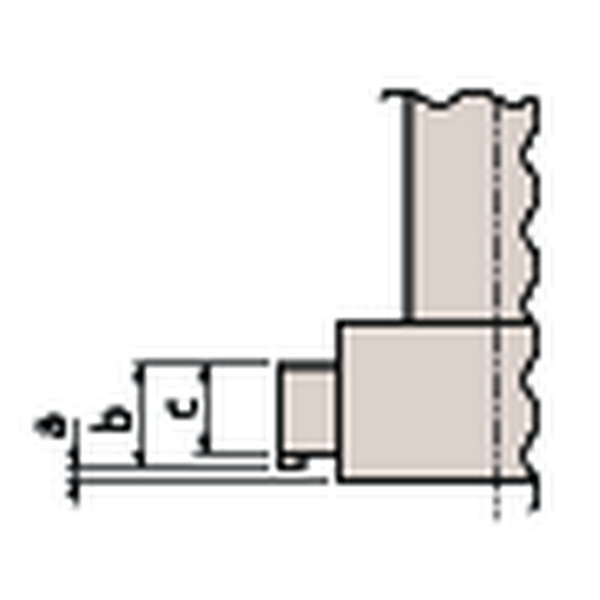

A	0,3
B	13
C	10
Delivered	Including box, key, certificate of inspection
Mass	290
Article Type	Product
Articlegroup	12
Articlegroup Subgroup	1200
relevant for catalog	International
Features	• Provides highly accurate three-point measurement of bore diameters • Titanium coated measuring pins provide durability and impact resistance, and the design allows measurement right to the bottom of blind holes (within max measuring depth limit). • Measuring pins are spaced at 120å¡ for increased accuracy of measurement compared to traditional two-point devices. • Turning the ratchet automatically centres the micrometer in the bore, which makes measurement fast and easy to perform without loss of precision • Steel setting rings are available (optional) for accurately setting the micrometer at points within the measuring range.
