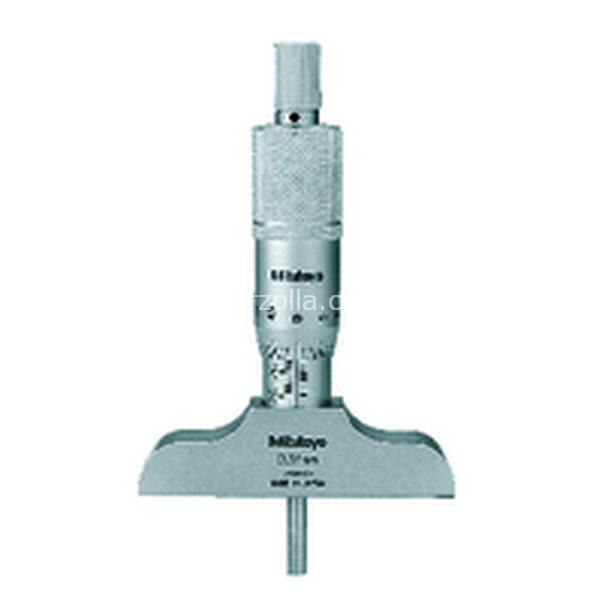

128-101

MICROMETRO PROF.0-25MM

Codice: N1943

Disponibilità: Non disponibile

Codice del produttore: 128-101

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

€156,60

Scarica PDF

Descrizione

128-101

Micrometro per misure di profonditàAstina di misura ø 4mm con bloccoLa frizione garantisce forza di misura costante.Disponibili modelli con superficie di misura in metallo duro .

Digital/Analog	Analog
Range	0-25
Measuring force	42865
Measuring span	25
Spindle pitch	0,5 mm with spindle lock
Micrometer Head Feed (0-25 mm)	±3 µm
Flatness of reference surface (base)	1,3 µm (63,5 mm) 2 µm (101,6 mm)
Flatness of measuring face (rod)	0,3
Parallelism between measuring face (rod) and reference surface (base)	(4+L/50) µm L=max. measuring length (mm)
Measuring surfaces	Hardened, precision ground, micro-lap finish
Base	Hardened tool steel
Graduation	0.01 mm
Base (W x T)	63,5 x 16 mm
Inch-Metric	Metric
Scale	thimble and sleeve satin chrome finish, ø 18 mm
Delivered	Including box and key
Mass	200
Article Type	Product
Articlegroup	10
Articlegroup Subgroup	1000
relevant for catalog	International
Export-Web (1=yes)	1
Features	• Two base size models available.• Fixed rod model for low-range measurements.
