542-092-2

VISUALIZZATORE

Codice: U4833

Disponibilità: Non disponibile

Codice del produttore: 542-092-2

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Scarica PDF

Descrizione

Display visualizzatore EB

Modello compatto con pannello di controllo.Con funzione di controllo I/O per il giudizio di tolleranza (3 o 5 livelli) o con uscita BCD parallela.Con un output analogico semplificato sono possibili misure dinamiche.

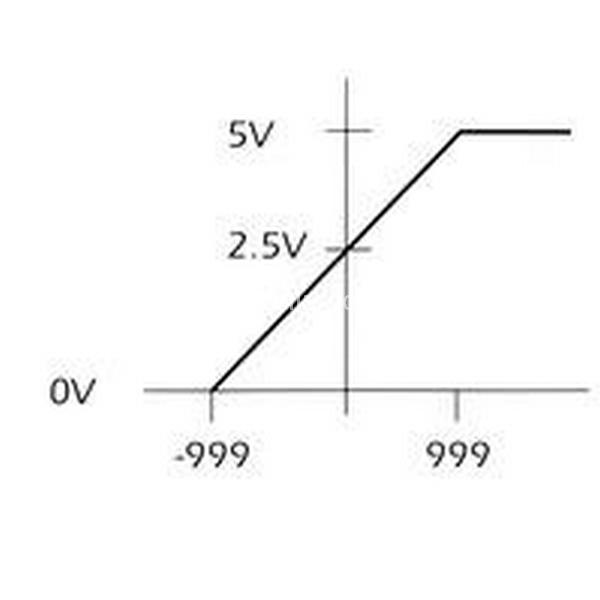

Accuracy	± 5 % (0 V to 5 V) and ± 0.5 % (2.5 V ± 200 mV before decalage reglage)
Digital step	0.01 мм, 0.005 мм, 0.001 мм, 0.0005 мм, 0.0001 мм
Digimatic data output	Yes
ExternalPRESET/ZERO	Yes
Resolution	0,0001/0,0005/ 0,001/0,005/0,01
Power supply	Terminal block (M3 screws) 12 to 24 VDC, 500 mA (max.) via an external supply
Zero set	Yes
Preset	Yes
Counting direction switchable	Yes
BCD output	Yes
Error display/output	Yes
External HOLD	yes
MAX / MIN / Difference measurement	Yes
mm / inch switching	Yes
Max. inputfrequency	1,25 MHz (2-phase square wave), response speed depends on gauge specification
Number of inputs	1
Environmental conditions	0–40 °C
Input signal type	Differential square-wave
Applicable gauge	LGF, LGK, LGB, LG, LGM, LGH (excluding LGF-Z with reference point, LGH with 0,01 µm resolution)
Gauge inputs	1
Power supply	Terminal block (M3 screws) 12 to 24 V DC, 6W or less (500 mA max.) external supply, AC-adapter is not standard accessory
Output I/O	Yes
Analogue output	Yes
Display	Green LED display, 6 digit plus sign
Tolerance judgement display	LED display (3 steps : Amber, Green, Red/5 steps : Amber, Amber flashing, Green, Red flashing, Red)
Article Type	Accessory
Articlegroup	611
Articlegroup Subgroup	61100
Mass	400
relevant for catalog	International
