542-015

VISUALIZZATORE DIGITALE

Codice: K2998

Disponibilità: Non disponibile

Codice del produttore: 542-015

Marca: MITUTOYO

Unità di misura: NR

Quantitativi ammessi: multipli di 1X

Da preventivare

Visualizzatore digitale eg linear gages

EG-101P VISUAL. PER LINE

Modello compatto con pannelloCon funzione di controllo I/O per il giudizio di tolleranza (3 o 5 livelli) o con uscita BCD parallela.

Specifications	Für 542-092-2
ExternalPRESET/ZERO	Yes
Resolution	0,0001/0,0005/0,001/0,005/0,01 мм
Resolution	0,0001/0,0005/ 0,001/0,005/0,01
Power supply	Anschlussleiste (M3 Schrauben), +12 bis + 24 V DC, 500 mA (max), über eine externe Spannungsversorgung
Model	EG
Output	Signal limite (3 ou 5 intervalles) Signal normal Donnée de mesure (format BCD)
Zero set	Yes
Preset	Yes
Counting direction switchable	Yes
Display	LED (grün) 6 Digits und Vorzeichen [-]
BCD output	Yes
Error display/output	Yes
External control signal input	Preset, maintien des données
Maximum input frequency	750 KHz (B-Phasen-Rechtecksignal)
MAX / MIN / Difference measurement	Yes
mm / inch switching	Yes
Max. inputfrequency	1,25 MHz (2-phase square wave), response speed depends on gauge specification
External peak-hold cancel	yes
Input signal type	Differential square-wave
Applicable gauge	LGF, LGK, LGB, LG, LGM, LGH (excluding LGF-Z with reference point, LGH with 0,01 µm resolution)
Gauge inputs	1
Output voltage	2.5 V
Full scale (¹)	0 V - 5 V

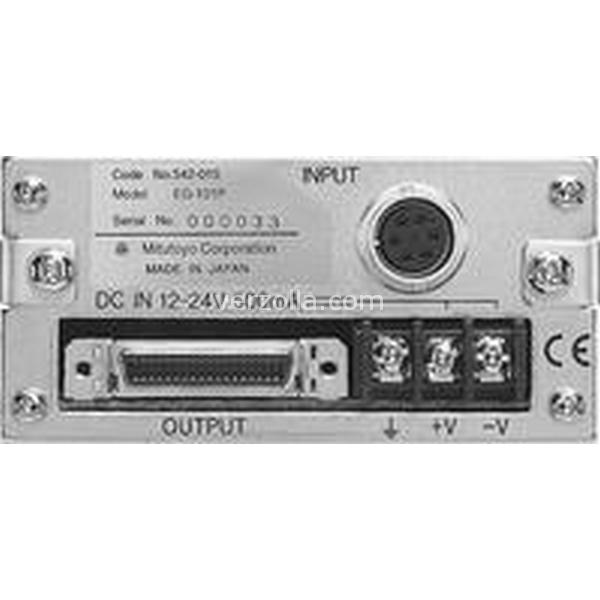

Power supply	Terminal block (M3 screws) 12 to 24 V DC, 6W or less (500 mA max.) external supply, AC-adapter is not standard accessory
Display	Green LED display 6 digits plus sign
Tolerance judgement display	LED display (3 steps : Amber, Green, Red/5 steps : Amber, Amber flashing, Green, Red flashing, Red)
Mass	400
Article Type	Accessory
Articlegroup	611
Articlegroup Subgroup	61100
relevant for catalog	International
